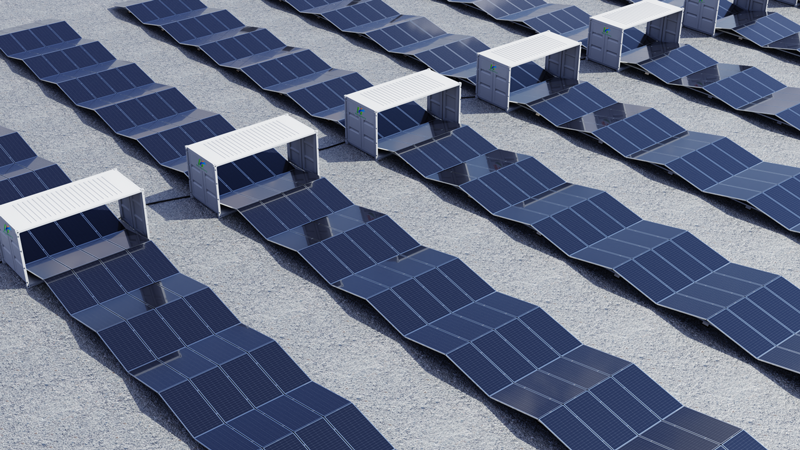

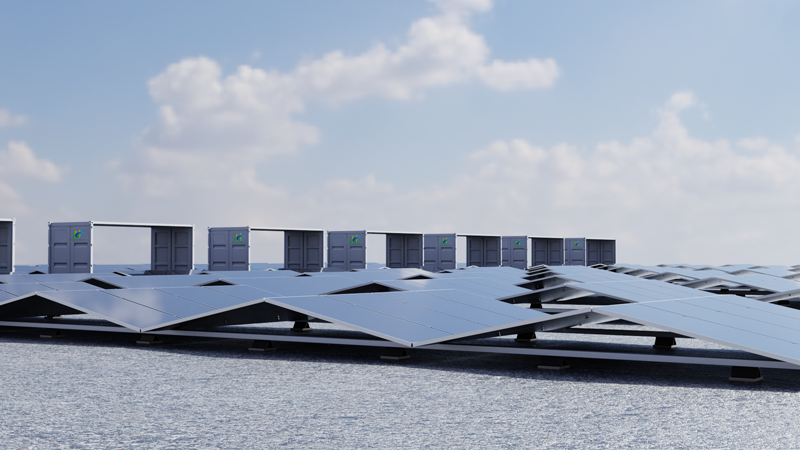

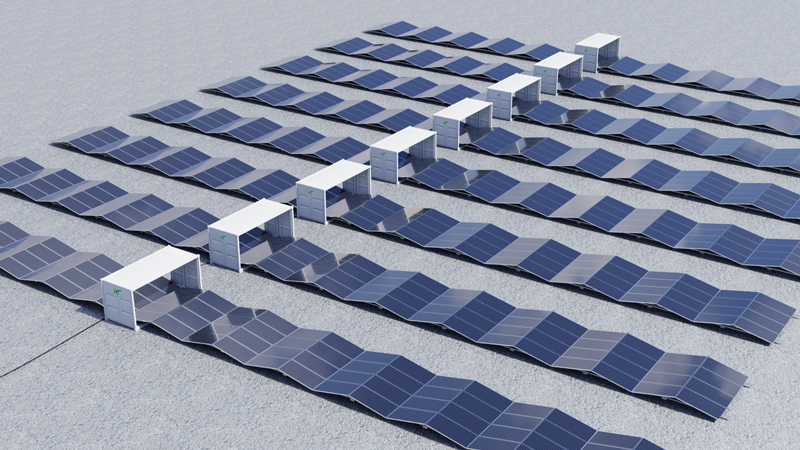

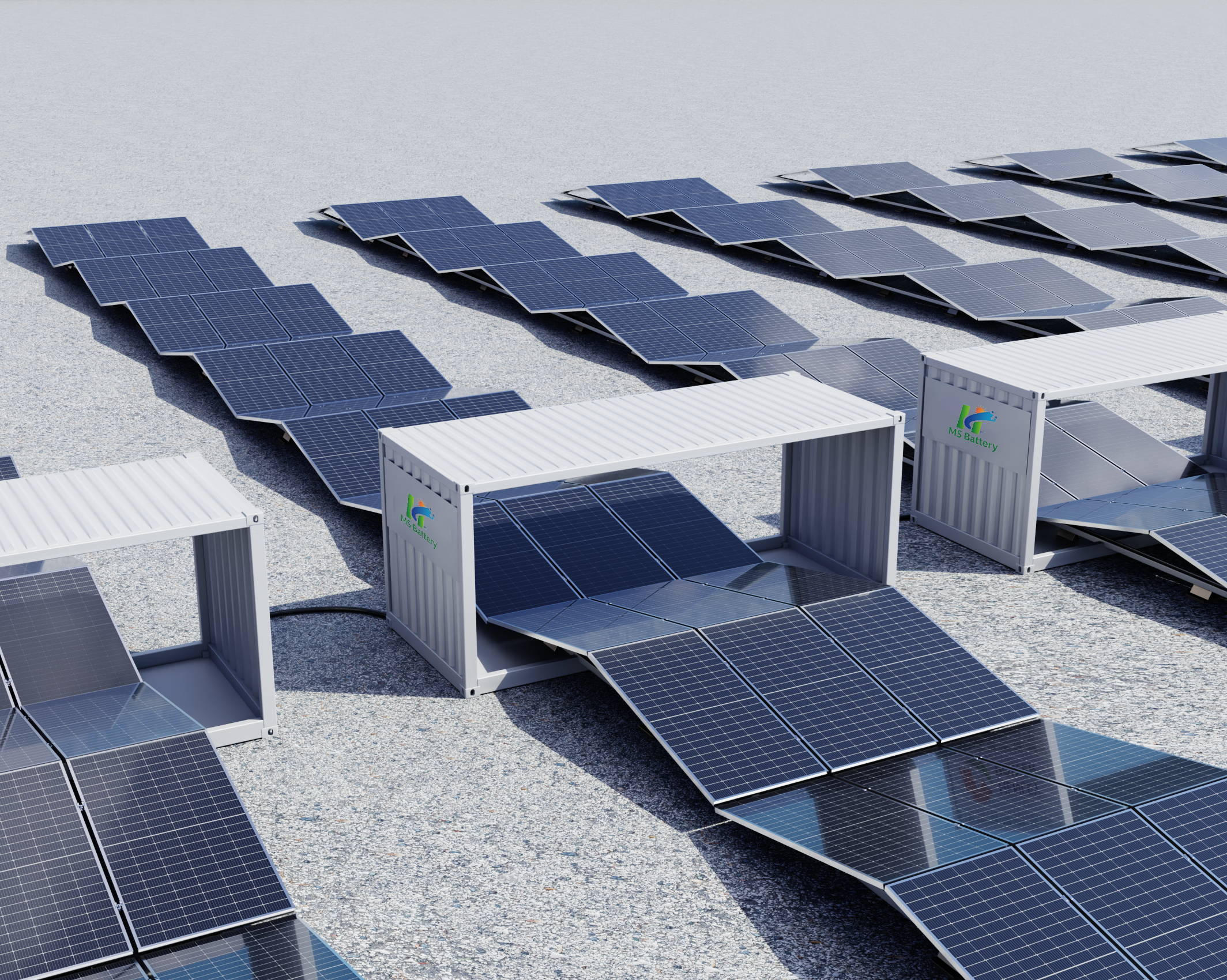

20-foot folding photovoltaic module without energy storage

  • 20-foot folding photovoltaic module without energy storage
  • 20-foot folding photovoltaic module without energy storage
  • 20-foot folding photovoltaic module without energy storage
  • 20-foot folding photovoltaic module without energy storage
  • 20-foot folding photovoltaic module without energy storage
  • 20-foot folding photovoltaic module without energy storage

20-foot folding photovoltaic module without energy storage

Email : sales@cnmsenergy.com
WhatsApp : +8615066412920
Contact Us →

Product Details

Minimalism

-High integration,Built-in Transportation Device,Time&Labor Saving.
-Modular Structure,Minimalism Design,Support Installation &Maintenance by Plug and Play .
-Base on the portable solution of standard 10/20/40 Cabinet,Convenient Transportation,Flexible Installation.
-Complete Machine Delivery,OOBE(Our Of Box Experience), Time&Labor Saving and Worry Free
-Support elastic extension of power&capacity,Satisfy demands entirely.

Safety

-High Tension Metal Structure,Fortress Grade Protection,ensure security of equipment .
-Accomplished Grounding System and coordination protection devices  of overload,over-voltage,current-leakage etc.,no place for electricity risk.

Intelligence

-Build-in intelligent control system,real-time optimize MPPT of PV panels and support remote monitoring.
-Break isolation of equipment ,connect conveniently with energy storage, generators etc.,accomplish intelligent panorama coordination of source,grid,load and storage.

Stability

-Industrial Level IP54 ,Waterproof&Dust-proof .
-Integrated and Intelligent Temperature Control system:refrigeration,heating, dehumidification and constant temperature&humidity.
-Stable Performance in harsh nature conditions such as plateau and desert.

CategorySpecificationHLY-08GP-M-18K20HLY-10GP-M-30K40
PackagingPV Array Power (Pmax/kWp)1830.7

Total Weight (ton)5.56.5

Unfolded Size53×2.2×0.5m69×2.4×0.8m

Folded Size2.2×1.4×1.7m2.2×1.5×2.1m

Max Slope Restriction1%1%

DirectionAllAll

Time to be unfolded (min)5060

Time to be folded (min)3050

Quantity of Installers44
ContainerModel8GP10GP

External Dimensions (L×W×H/mm)2900×2200×22002991×2438×2591

Weight (ton)1.62.5
InverterModelSU-10kSU-10k

Inverter TypeOn-gridOn-grid

Quantity23

Max PV Power (Pmax/Wp)1300015600

Nominal AC Output Power (W)1000012000

Max AC Output Power (W)1100013200

Nominal AC Voltage (V)3L/N/PE 220/380V,230/400V3L/N/PE 220/380V,230/400V

AC Grid Frequency Range (Hz)50/6050/60

Max Output Current (A)16.7/15.920/19.1

Size (W×H×D/mm)422×702×281422×702×281

Weight (kg)33.633.6

Operating Temperature Range (°C)25–65°C25–65°C

CommunicationRS485/RS232/Wi-Fi/LANRS485/RS232/Wi-Fi/LAN
BracketMaterialCarbon Steel Square TubeCarbon Steel Square Tube

Single Bracket Dimension (mm)2190×1693×302190×1693×30

Quantity of Panels in One Bracket33

Angle of Unfolding Bracket (°)1515

Length of Unfolding Bracket (m)4848

Operating Area of Unfolding Brackets (㎡)105105

Quantity of Brackets3030
Storage SystemModule TypeLFP 10kWh/LVLFP 10kWh/LV

Rated Capacity200Ah200Ah

Rated Power10.24kWh10.24kWh

Rated Charge Power5kW5kW

Peak Power (Discharge Only)10kW, for 3s10kW, for 3s

Rated Voltage51.2V d.c.51.2V d.c.

Dimensions (W×H×D/mm)585×940×205585×940×205

Weight (kg)116.5116.5

CommunicationRS485RS485

Operating Temperature Range (°C)-20°C~+50°C, derating above +45°C-20°C~+50°C, derating above +45°C

Quantity of Battery (set)22
Diesel GeneratorModelKDE6700X3KDE6700X3

Rated Output5.5kVA5.5kVA

Peak Output6kVA6kVA

Rated Frequency50Hz50Hz

Rated Voltage203/400V203/400V

Rated Current7.9A7.9A

External Dimensions (L×W×H/mm)720×492×650720×492×650

Weight (kg)9595

Quantity (set)11


Scene usage

  • cb4ba80aa3f09e467632b0f4f0430092
    Spain
    Energy storage system: 625kwpcs+1305kwh liquid cooling battery all in one cabinet
    Application scenario: Farm
    Date of shipment:May,2025
    Application:A European farm uses five
    125kW/261kWh cabinets to store solarenergy and ensure backup power for
    critical operations
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario:Renewable Energy Community in Europe</br>Delivery data:Oct,2025</br>Application:Deploying PV </br>250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
    Poland
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario:Renewable Energy Community in Europe
    Delivery data:Oct,2025
    Application:Deploying PV
    250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario :Estonia</br>Delivery data:Mar,2026</br>Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
    Estonia
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario :Estonia
    Delivery data:Mar,2026
    Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
  • Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario：Factory</br>Date of shipment:July,2025</br>Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
    Philippines
    Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario：Factory
    Date of shipment:July,2025
    Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
  • Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet </br>Application scenario:Farm</br>Delivery data:Dec,2025</br>Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
    Thailand
    Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario:Farm
    Delivery data:Dec,2025
    Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
  • Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario :Industrial park</br>Delivery data:May,2025</br>Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.
    Italy
    Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario :Industrial park
    Delivery data:May,2025
    Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.

Production Line

  • Airtightness Test
  • Box Assembly
  • EOL Test
  • Left Airtightness Test
  • Laser Welding
  • Right-Laser Cleaning
  • Left 2 - Polaroid Photo
  • Insulation Testing

FAQ

Q：What is your lead time for the mass production?
A：General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.


Q：What kind of certificates do you have?
A：We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 & etc. if your need.


Q：Are you a factory or a trading company
A：We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.


Q：What information do you need to make a customized battery pack?
A：We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.


Q：Are you battery real capacity?
A：All of our battery cells with Grade A, 100% new and real capacity.


Q：What is your company's advantage?
A：We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after sales service.


Q：Do you accept OEM/ODM?
A：Yes, it is avaliable.


Q：Do you provide after-sales serive?
A：Yes, the warranty is usually 3 years, if any quality problems on our side in this period, we can send new one as replacement.


Q：Can I have samples to test? And what is lead time for sample order?
A：Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
