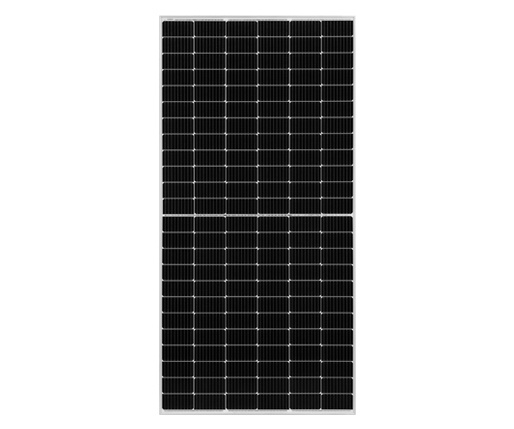

470W MBB Half-Cell Module

Name: 470W MBB Half-Cell Module
SKU: 0

Email : sales@cnmsenergy.com

WhatsApp : +8615066412920

Product Details

Cell	Mono
Weight	24.7kg ± 3%

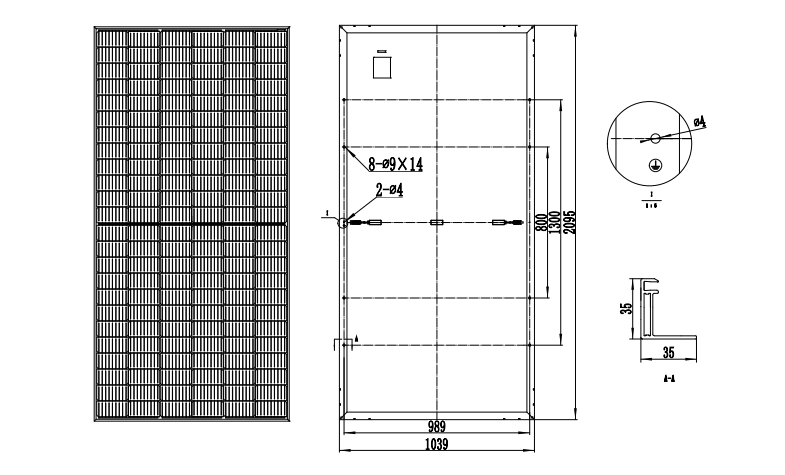

Dimensions	2095 ± 2mm × 1039 ± 2mm × 35 ± 1mm
Cable Cross Section Size	4mm² (IEC), 12 AWG (UL)
No. of Cells	144 (6×24)
Junction Box	IP68, 3 diodes
Connector	MC4 (1000V), MC4 (1500V)
Cable Length (Including Connector)	Portrait: 300mm (+) / 400mm (-); Landscape: 1200mm (+) / 1200mm (-)
Packaging Configuration	31 pcs / pallet; 682 pcs / 40ft Container

Electrical Parameters at STC

Type	RZ-435HM-144/Single	RZ-440HM-144/Single	RZ-445HM-144/Single	RZ-450HM-144/Single	RZ-455HM-144/Single	RZ-460HM-144/Single	RZ-465HM-144/Single	RZ-470HM-144/Single
Rated Maximum Power (Pmax) [W]	435	440	445	450	455	460	465	470
Open Circuit Voltage (Voc) [V]	49.28	49.42	49.56	49.70	49.85	50.01	50.15	50.31
Maximum Power Voltage (Vmp) [V]	40.75	41.0	41.21	41.52	41.82	42.13	42.43	42.69
Short Circuit Current (Isc) [A]	11.22	11.27	11.32	11.36	11.41	11.45	11.49	11.53
Maximum Power Current (Imp) [A]	10.68	10.73	10.80	10.84	10.88	10.92	10.96	11.01
Module Efficiency [%]	19.5	19.8	20.0	20.3	20.5	20.7	20.9	21.2

Power Tolerance	0~+5W
Temperature Coefficient of Isc (α_Isc)	+0.044%/°C
Temperature Coefficient of Voc (β_Voc)	-0.272%/°C
Temperature Coefficient of Pmax (γ_Pmp)	-0.350%/°C

Electrical Parameters at NOCT

Type	RZ-445HM-144/Single	RZ-450HM-144/Single	RZ-455HM-144/Single	RZ-460HM-144/Single	RZ-465HM-144/Single	RZ-470HM-144/Single
Rated Max Power (Pmax) [W]	336	340	344	348	352	355
Open Circuit Voltage (Voc) [V]	46.65	46.90	47.15	47.38	47.61	47.84
Max Power Voltage (Vmp) [V]	38.95	39.19	39.44	39.68	39.90	40.10
Short Circuit Current (Isc) [A]	9.20	9.25	9.29	9.33	9.38	9.42
Max Power Current (Imp) [A]	8.64	8.68	8.72	8.76	8.81	8.86

Operating Conditions

Parameter	Value
Maximum System Voltage	1000V/1500V DC
Operating Temperature	-40°C ~ +85°C
Maximum Series Fuse Rating	20A
Maximum Static Load, Front*	5400Pa (112 lb/ft²)
Maximum Static Load, Back*	2400Pa (50 lb/ft²)
Safety Class	Class II
Bypass Diode Rating	45±2°C
UL Type	UL Type 1
