Residential All-In One Ess

  • Residential All-In One Ess
  • Residential All-In One Ess
  • Residential All-In One Ess

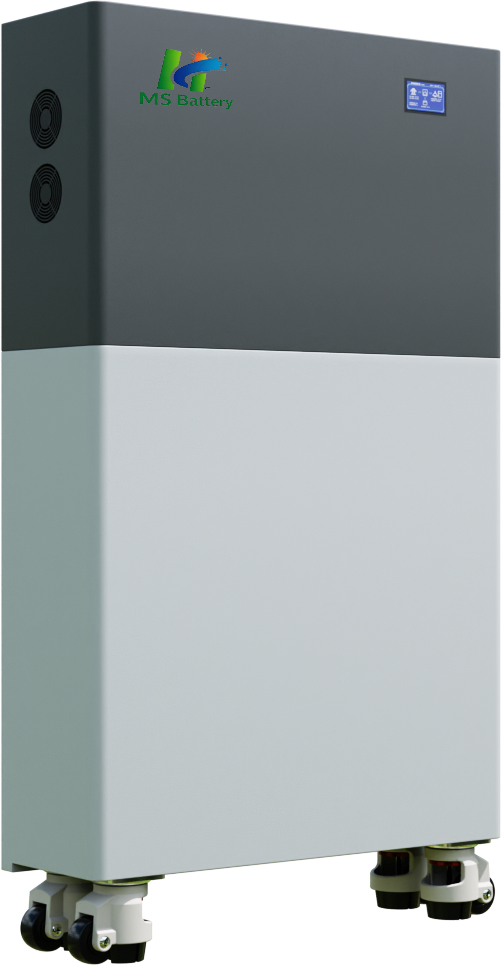

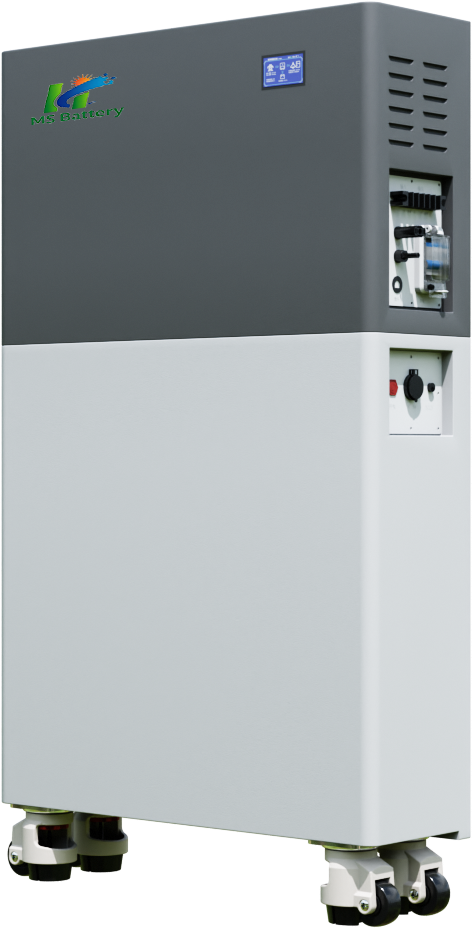

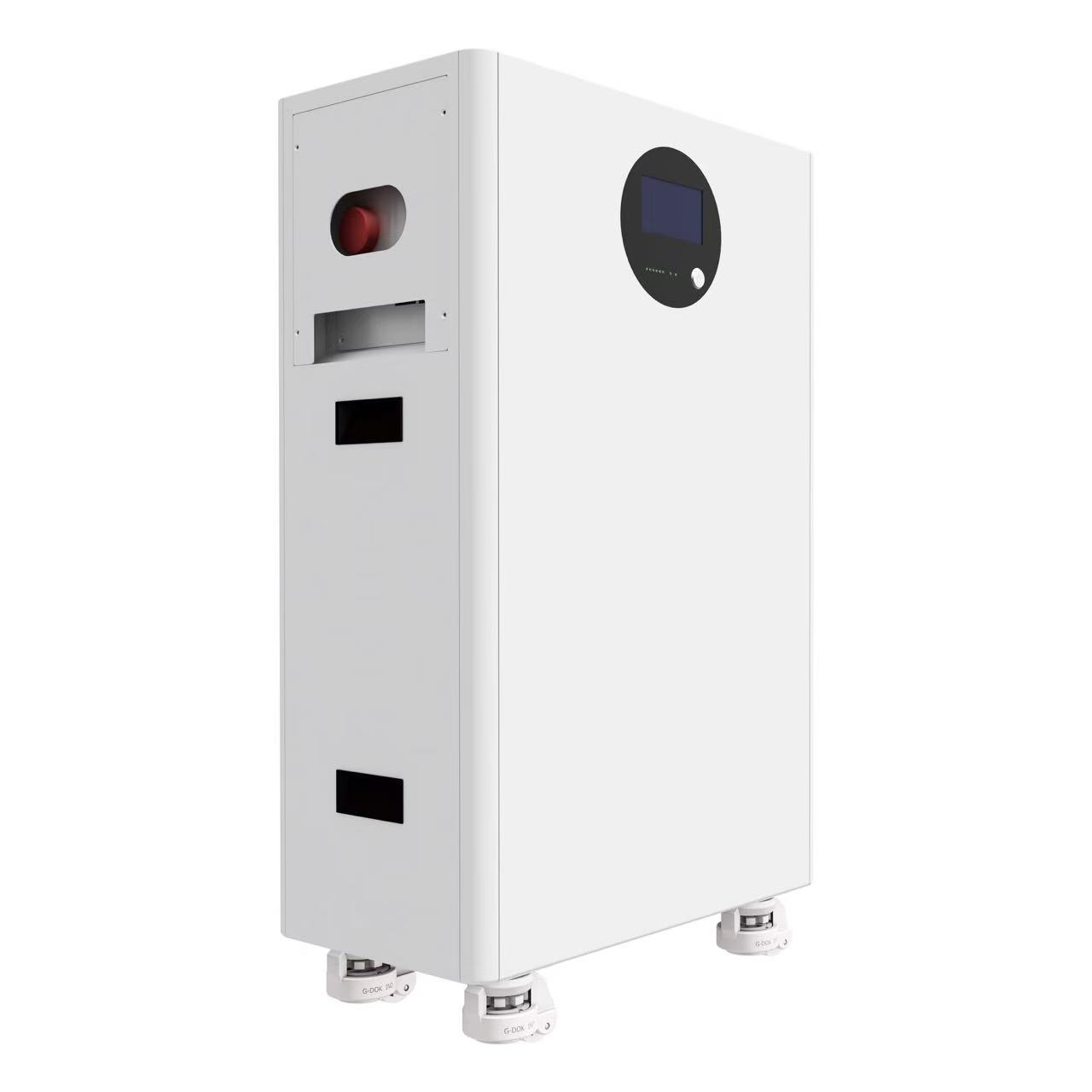

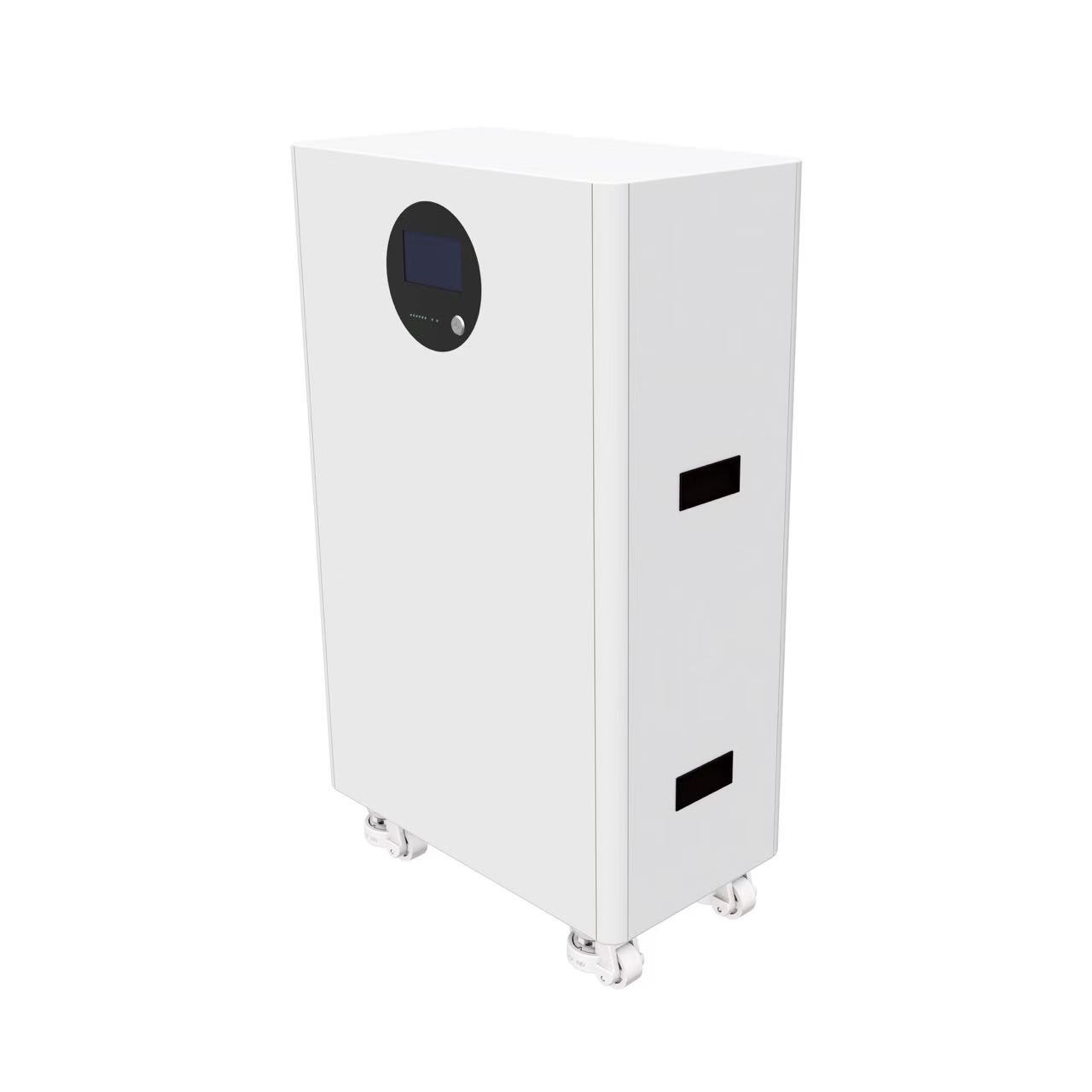

Residential All-In One Ess

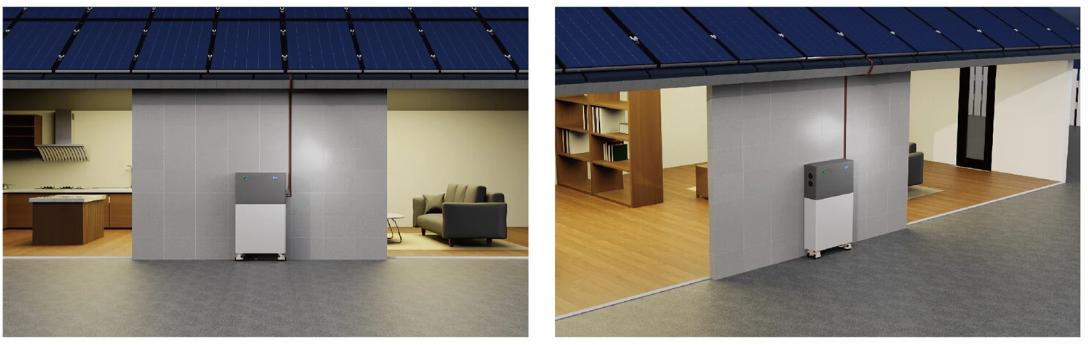

Home PVESS can reach spontaneous self-use as well as energy-saving. Significant backup power of loads, and power supply guarantee during power outages.
Email : sales@cnmsenergy.com
WhatsApp : +8615066412920
Contact Us →

Product Details

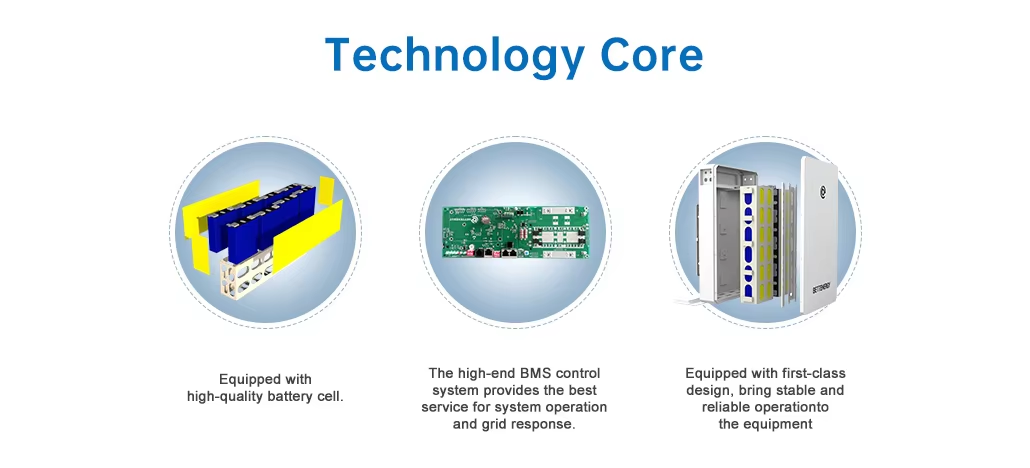

All-in-One Design
- AlO modular system that includes inverter, charger controller, UPS-level switching system and battery modules
Easy Installation & Capacity Expansion
- Plug & Play modular design
- Save 50% installation time
- Save 50% installation space
High Safety
- IP65 outdoor design
- 3-level (cell-pack-system) protection
- AFCl standard
- Overload capacity 150% for 10mins
Easy Management
- Dynamic SOC calibration
- RSD Ready & VPP Ready
- Support remote monitoring through mobile phone

- APP & global Cloud platform available

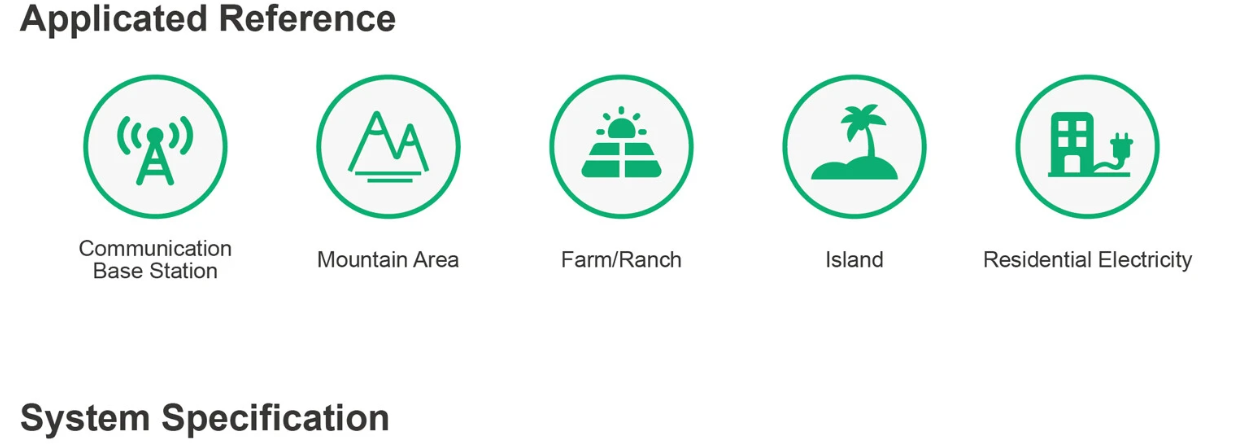

668d2f22-840a-435d-adec-4a0cafa2cc48

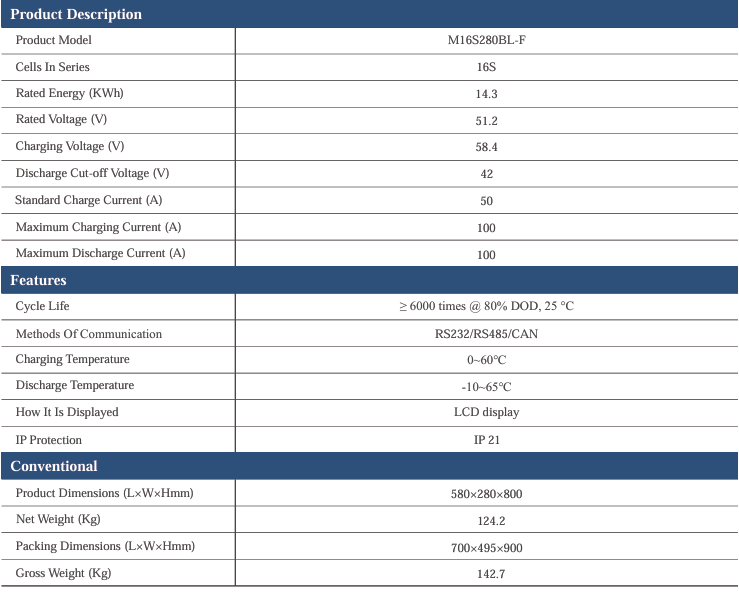

Nominal Capacity10.5 kWh14.3 kWh
Nominal Voltage51.2 V
AC Output Voltage220 VAC ±10% / 400 VAC ±10% (optional)
AC Output Power5000 W
AC Output Frequency50/60 Hz
Max. Charge Voltage58.4 V
Discharge Cut-off Voltage40 V
Communication ModeCAN / RS485
Parallel Branch Number1

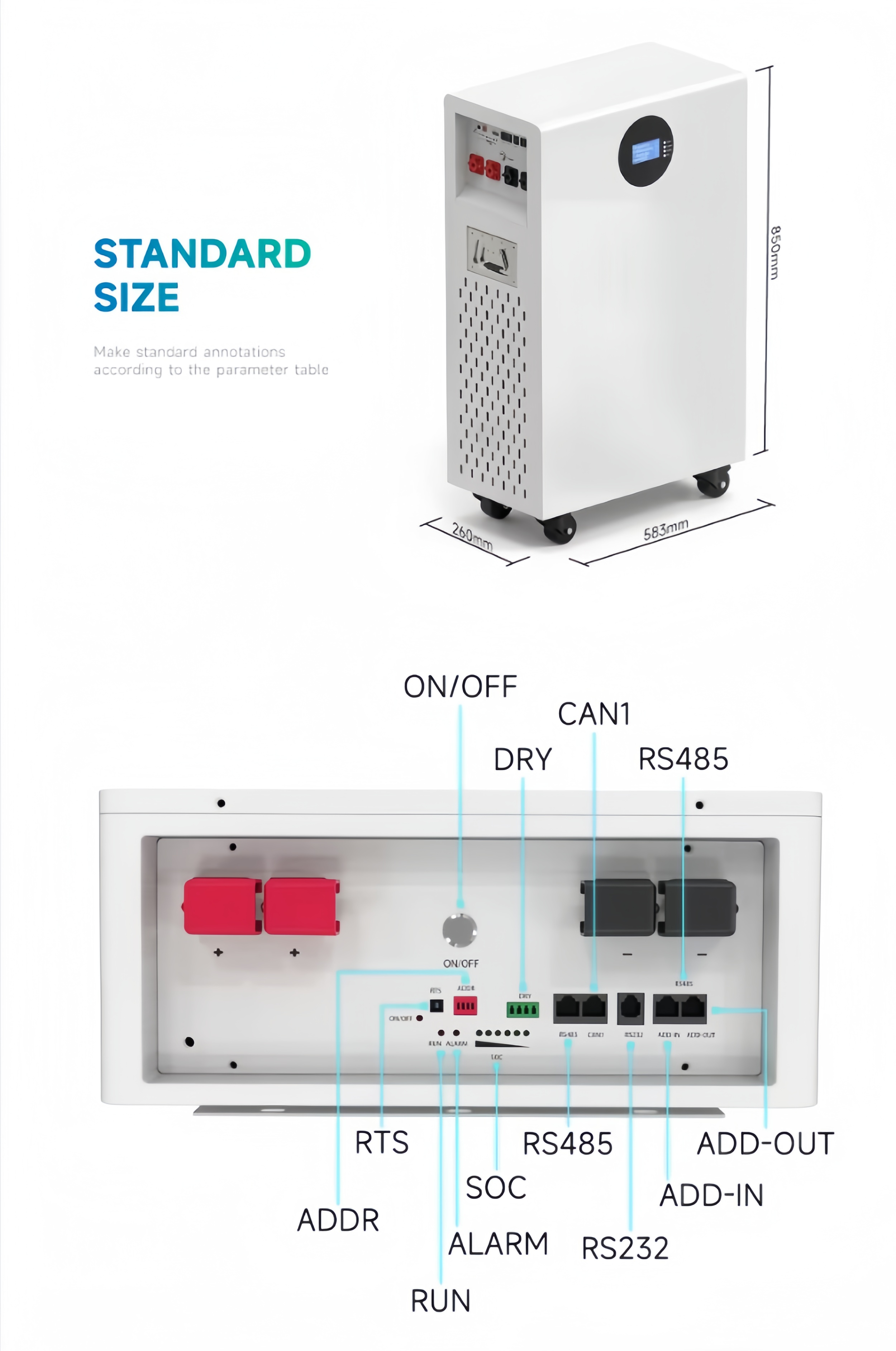

Dimensions700×245×1200 mm
Weight~135 kg~156 kg
IP RatingIP65
Charging Temperature0–50 °C
Discharging Temperature–20–60 °C
Storage Temperature–20–50 °C
Altitude>1000 m
Humidity5%–95% RH (Non-condensing)
Cycle Life>8000 cycles at 25°C



Scene usage

  • cb4ba80aa3f09e467632b0f4f0430092
    Spain
    Energy storage system: 625kwpcs+1305kwh liquid cooling battery all in one cabinet
    Application scenario: Farm
    Date of shipment:May,2025
    Application:A European farm uses five
    125kW/261kWh cabinets to store solarenergy and ensure backup power for
    critical operations
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario:Renewable Energy Community in Europe</br>Delivery data:Oct,2025</br>Application:Deploying PV </br>250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
    Poland
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario:Renewable Energy Community in Europe
    Delivery data:Oct,2025
    Application:Deploying PV
    250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario :Estonia</br>Delivery data:Mar,2026</br>Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
    Estonia
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario :Estonia
    Delivery data:Mar,2026
    Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
  • Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario：Factory</br>Date of shipment:July,2025</br>Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
    Philippines
    Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario：Factory
    Date of shipment:July,2025
    Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
  • Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet </br>Application scenario:Farm</br>Delivery data:Dec,2025</br>Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
    Thailand
    Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario:Farm
    Delivery data:Dec,2025
    Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
  • Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario :Industrial park</br>Delivery data:May,2025</br>Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.
    Italy
    Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario :Industrial park
    Delivery data:May,2025
    Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.

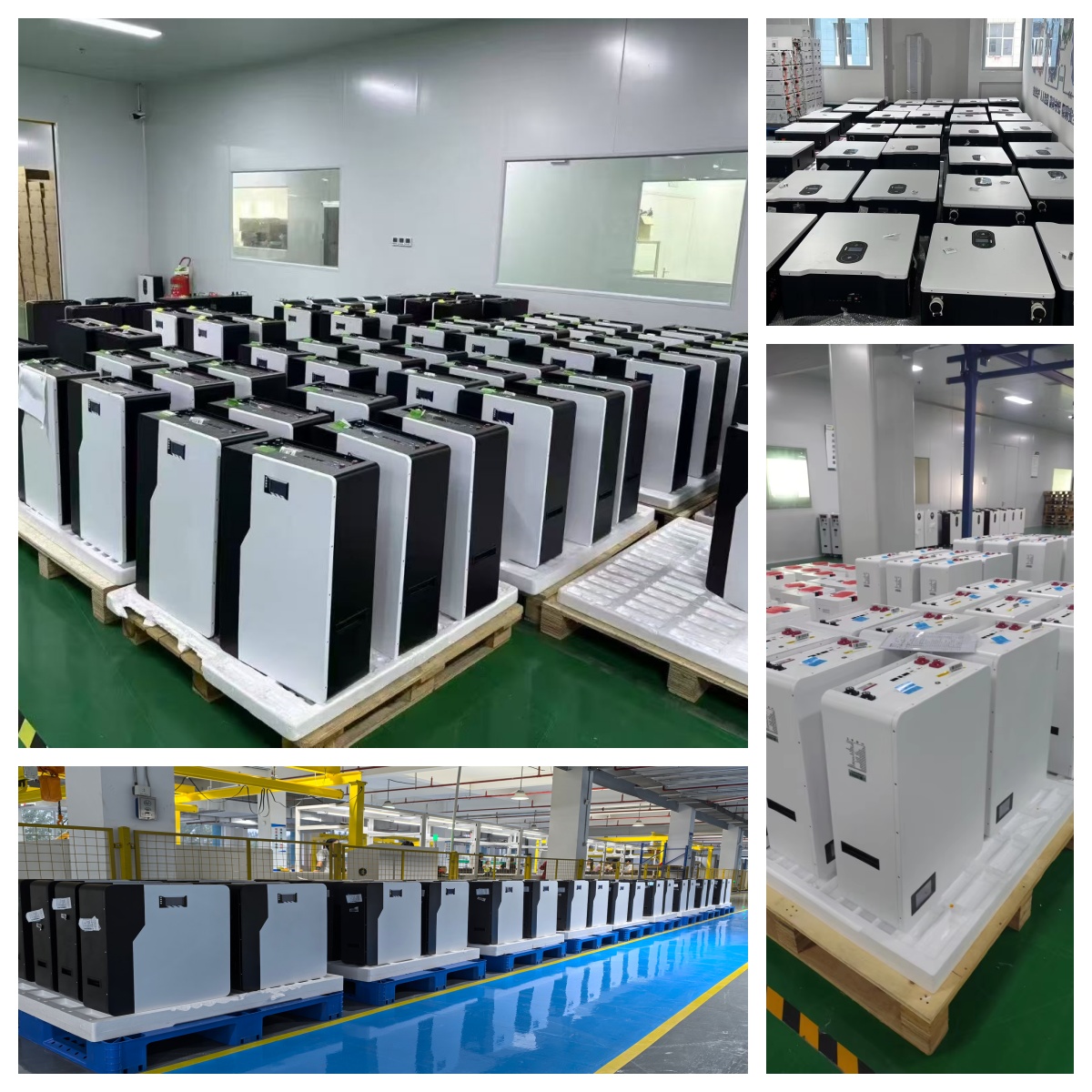

Production Line

  • Airtightness Test
  • Box Assembly
  • EOL Test
  • Left Airtightness Test
  • Laser Welding
  • Right-Laser Cleaning
  • Left 2 - Polaroid Photo
  • Insulation Testing

FAQ

Q：What is your lead time for the mass production?
A：General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.


Q：What kind of certificates do you have?
A：We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 & etc. if your need.


Q：Are you a factory or a trading company
A：We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.


Q：What information do you need to make a customized battery pack?
A：We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.


Q：Are you battery real capacity?
A：All of our battery cells with Grade A, 100% new and real capacity.


Q：What is your company's advantage?
A：We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after sales service.


Q：Do you accept OEM/ODM?
A：Yes, it is avaliable.


Q：Do you provide after-sales serive?
A：Yes, the warranty is usually 3 years, if any quality problems on our side in this period, we can send new one as replacement.


Q：Can I have samples to test? And what is lead time for sample order?
A：Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
