Wall Mounted 51.2V 10Kwh Solar Battery

  • Wall Mounted 51.2V 10Kwh Solar Battery
  • Wall Mounted 51.2V 10Kwh Solar Battery
  • Wall Mounted 51.2V 10Kwh Solar Battery
  • Wall Mounted 51.2V 10Kwh Solar Battery
  • Wall Mounted 51.2V 10Kwh Solar Battery
  • Wall Mounted 51.2V 10Kwh Solar Battery

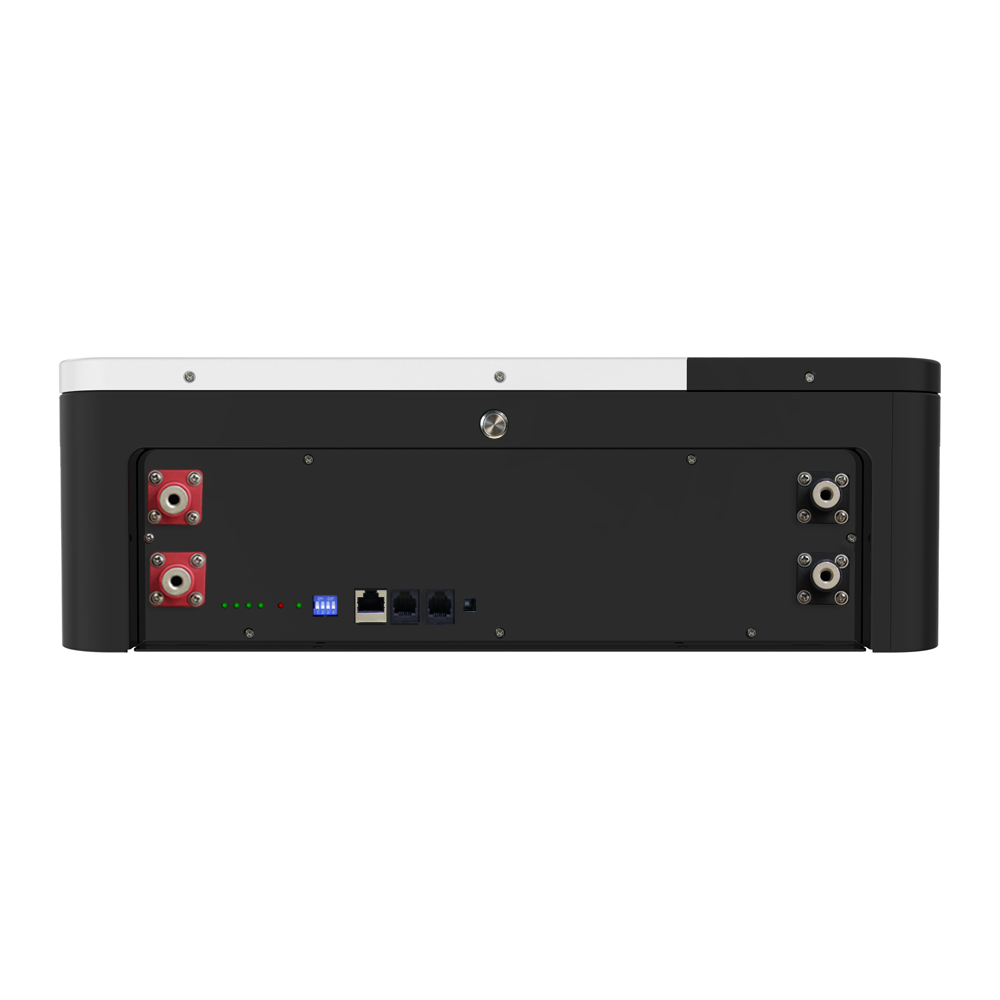

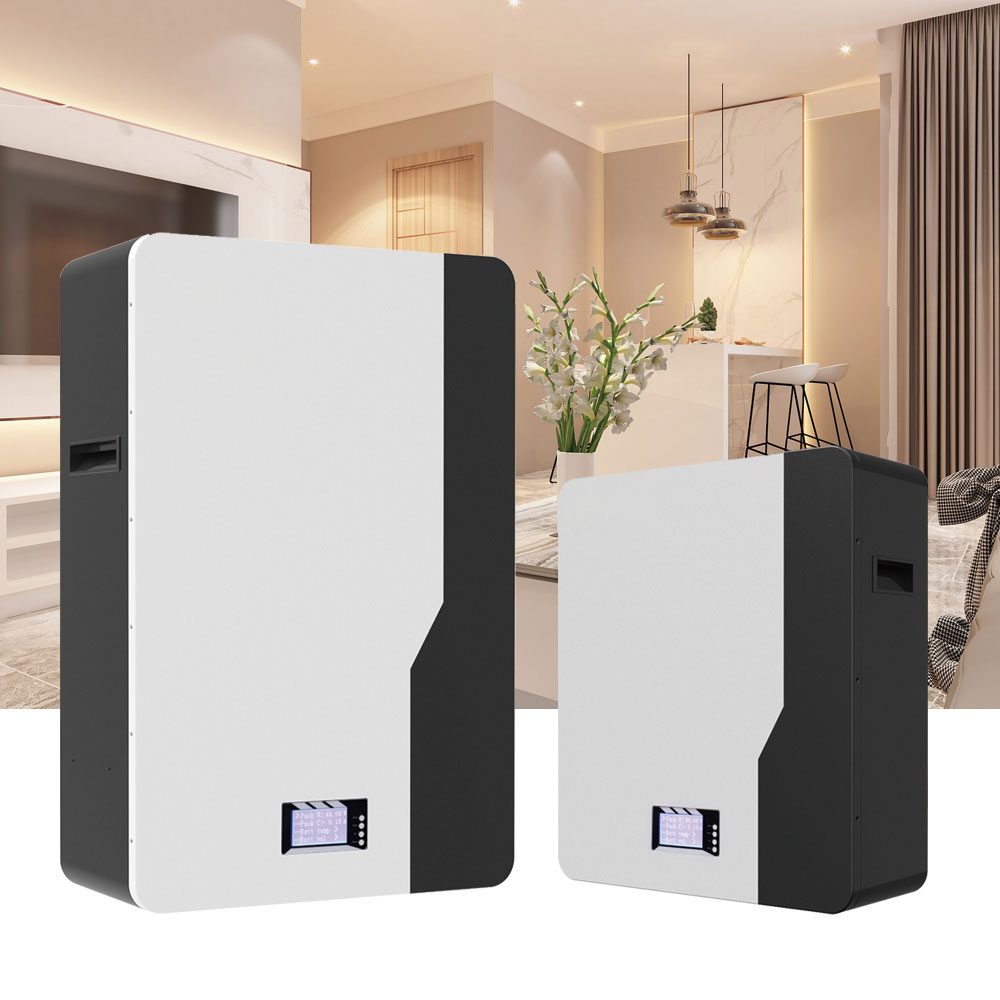

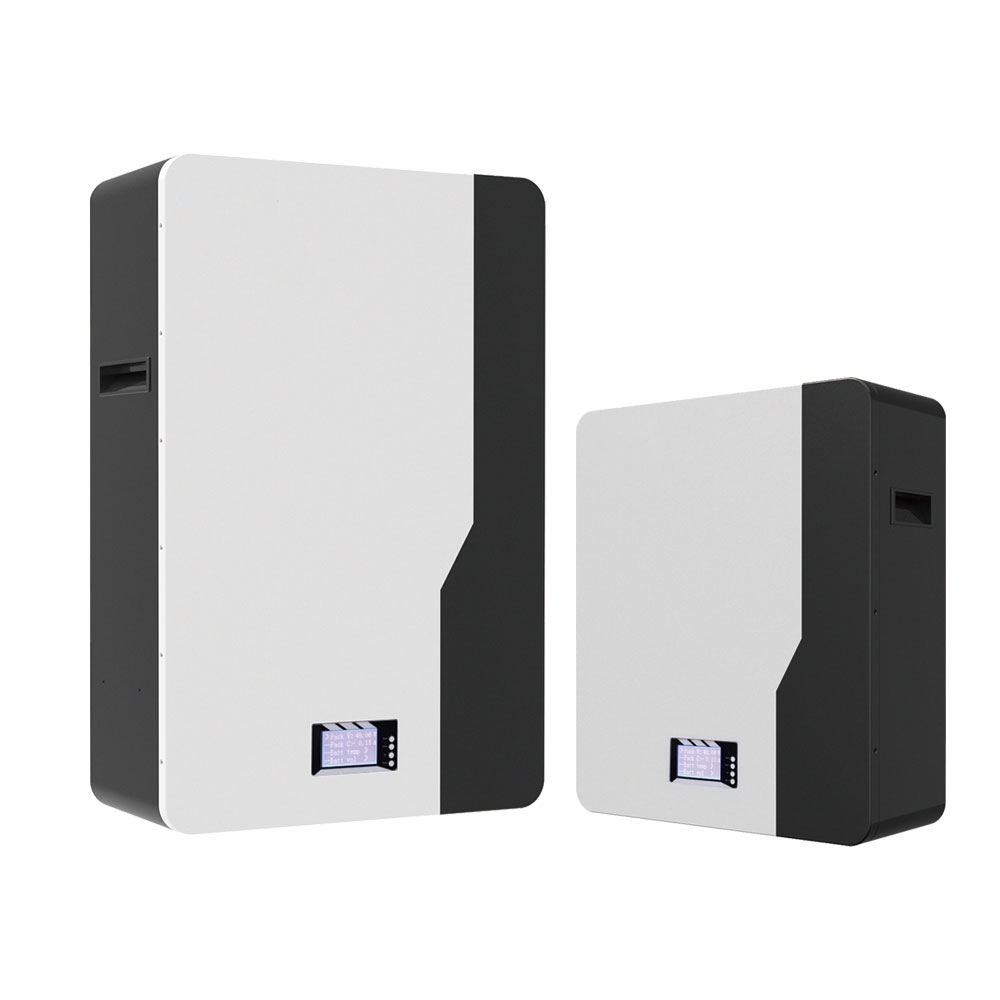

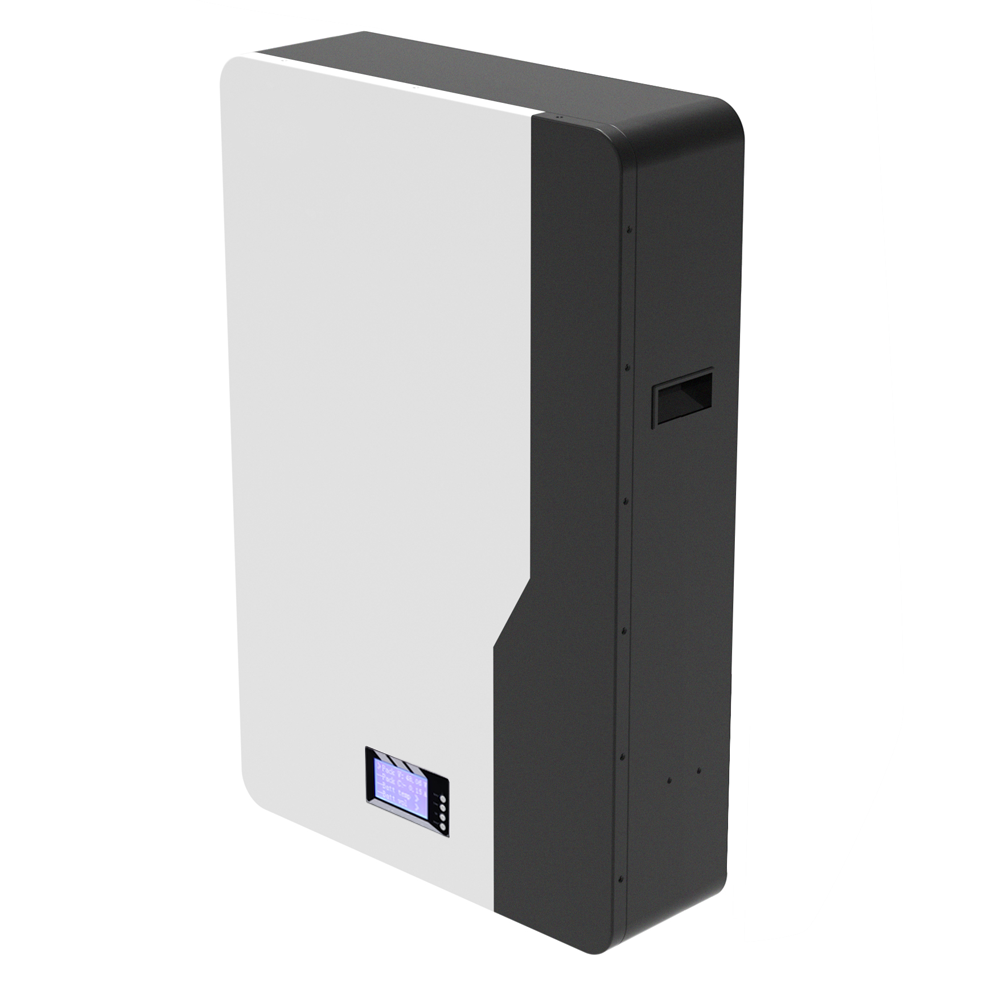

Wall Mounted 51.2V 10Kwh Solar Battery

This 51.2V, 10kWh, wall-mounted lithium iron phosphate (LiFePO₄) solar battery is a high-performance home energy storage solution designed to increase solar self-use and reduce electricity costs. It is compatible with major inverter brands such as Victron, Goodwe, and Deye.147 Its IP65 rating allows for outdoor installation, and its built-in waterproof seal ensures stable operation in a wide operating temperature range of -20°C to 60°C, making it an ideal choice for home solar energy storage.
Email : sales@cnmsenergy.com
WhatsApp : +8615066412920
Contact Us →

Product Details

The intelligent management system is implemented through an optional Wi-Fi/Bluetooth module. Users can monitor the battery status (such as SOC and temperature) in real time through the app. It is also equipped with an intelligent BMS system to provide multiple protections such as overcharge/over-discharge/overcurrent/temperature.

This battery is primarily designed for residential solar energy storage systems and is an ideal choice for building off-grid or hybrid grid backup power. It offers significant advantages over traditional lead-acid batteries.

Advantages of Wall Mounted 51.2V 10Kwh Solar Battery

1. Extreme Space Utilization

The wall-mounted design frees up floor space, making it particularly suitable for limited spaces like homes and garages, improving space efficiency.

2. Flexible Installation

Supports multi-scenario deployment, both indoors and outdoors (IP65 protection rating), is waterproof and dustproof, and can be mounted on eaves, walls, and other locations, adapting to complex environments.

3. Stable Operation over a Wide Temperature Range

An operating temperature range of -20°C to 60°C (select models include low-temperature heating), ensuring reliability in extreme climates.

4. Ultra-Long Cycle Life

The LiFePO₄ battery cell offers over 8,000 cycles and a designed lifespan of over 15 years, significantly reducing replacement frequency.

Product Parameter
Battery TypeLiFePO4
Nominal Voltage51.2 V
Nominal Capacity200 Ah
Wireless communicationBluetooth (Use the APP)/Wi-Fi(Connect to the Internet)
Nominal Energy10kwh
CommunicationCAN/RS485/232
Screen3.5-inch touch screen
Recommended Charge Current≤100 A
Recommended maximum load power≥8.2 kW
Ultimate Maximum load power≥11 KW
Recommended Charge Voltage57.6V
BMS Charge Cut-Off Voltage58.4V
Discharge temperature range-30 ~ 60 ºC
Unit Dimensions (L x W x H)780*440*450
Gross Weight86KG
Enclosure ProtectionIP65
CertificationsUN38.3/ IEC62619
Cycle life8000 Cycles
Warranty Duration10years
In tems of safteyEquipped with fire extinguishing system



Scene usage

  • cb4ba80aa3f09e467632b0f4f0430092
    Spain
    Energy storage system: 625kwpcs+1305kwh liquid cooling battery all in one cabinet
    Application scenario: Farm
    Date of shipment:May,2025
    Application:A European farm uses five
    125kW/261kWh cabinets to store solarenergy and ensure backup power for
    critical operations
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario:Renewable Energy Community in Europe</br>Delivery data:Oct,2025</br>Application:Deploying PV </br>250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
    Poland
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario:Renewable Energy Community in Europe
    Delivery data:Oct,2025
    Application:Deploying PV
    250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario :Estonia</br>Delivery data:Mar,2026</br>Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
    Estonia
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario :Estonia
    Delivery data:Mar,2026
    Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
  • Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario：Factory</br>Date of shipment:July,2025</br>Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
    Philippines
    Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario：Factory
    Date of shipment:July,2025
    Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
  • Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet </br>Application scenario:Farm</br>Delivery data:Dec,2025</br>Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
    Thailand
    Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario:Farm
    Delivery data:Dec,2025
    Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
  • Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario :Industrial park</br>Delivery data:May,2025</br>Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.
    Italy
    Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario :Industrial park
    Delivery data:May,2025
    Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.

Production Line

  • Airtightness Test
  • Box Assembly
  • EOL Test
  • Left Airtightness Test
  • Laser Welding
  • Right-Laser Cleaning
  • Left 2 - Polaroid Photo
  • Insulation Testing

FAQ

Q：What is your lead time for the mass production?
A：General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.


Q：What kind of certificates do you have?
A：We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 & etc. if your need.


Q：Are you a factory or a trading company
A：We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.


Q：What information do you need to make a customized battery pack?
A：We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.


Q：Are you battery real capacity?
A：All of our battery cells with Grade A, 100% new and real capacity.


Q：What is your company's advantage?
A：We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after sales service.


Q：Do you accept OEM/ODM?
A：Yes, it is avaliable.


Q：Do you provide after-sales serive?
A：Yes, the warranty is usually 3 years, if any quality problems on our side in this period, we can send new one as replacement.


Q：Can I have samples to test? And what is lead time for sample order?
A：Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
