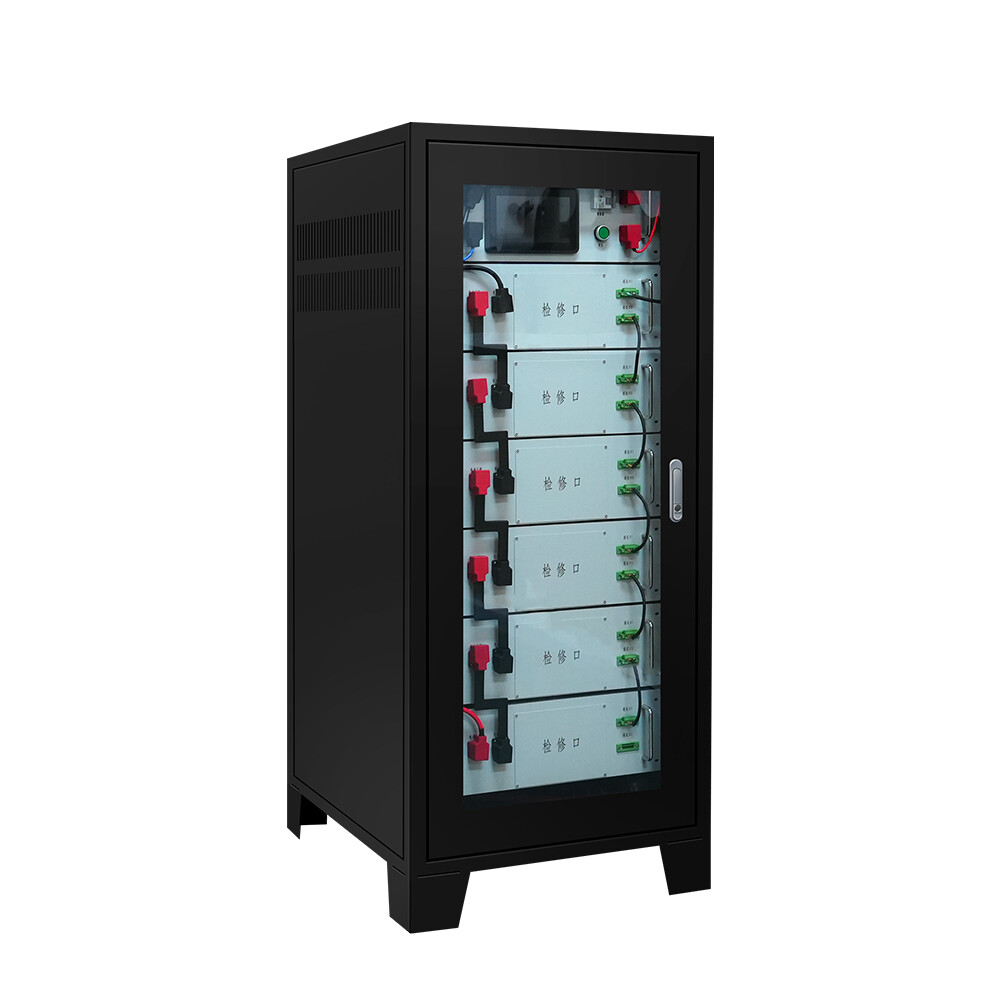

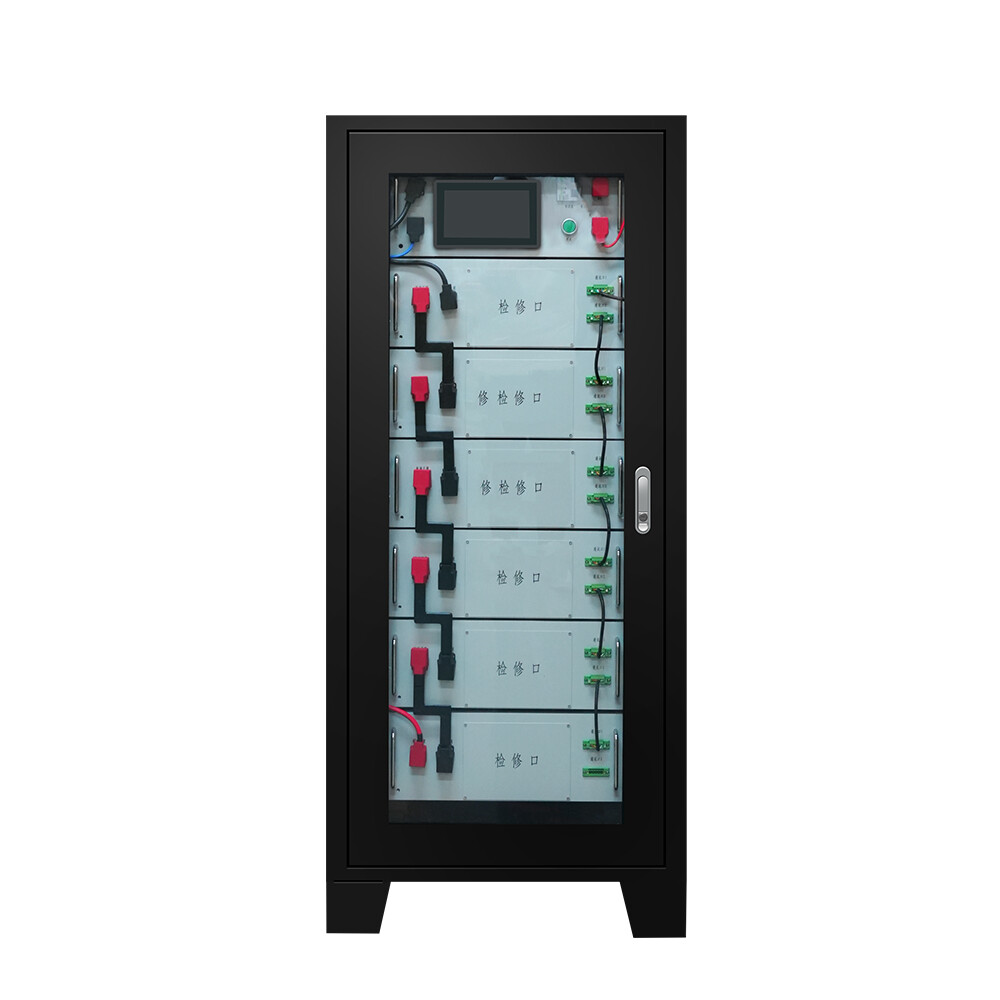

Rack mounted battery

Name: Rack mounted battery
SKU: 0

-Safe & Reliable
-Flexible & easy operation

Email : sales@cnmsenergy.com

WhatsApp : +8615066412920

Product Details

Safe & Reliable

Adopting long life square lithium iron phosphate batte cell, high security and long cycle life.

Internally integrated BMS (BMS for communication base stations and BMS for household energy storage) Independent charging and discharging protection system, safe and wor-free use.

Low voltage design, safe and convenient installation and maintenance.

The batte cell has UL, IEC ceication, and the whole machine has UN38.3, MSDS ceication.

-20~+55°C wider operating temperature range, easy to adapt to a variety of environmental challenges.

Flexible & easy operation

Adopts standard 19-inch rackmount design, easy to integrate into various application scenarios.

Quick and easy installation.

Home energy storage models-compatible with the mainstream brands of inveers on the market communications.

Communication models-compatible with mainstream rectier brand monitoring module communication.

Expandable capacity from 5kWh to 50kWh to meet diversied energy needs.

Series	Model	Nominal Voltage[V]	Nominal Capacity[Ah]	W[mm]	D[mm]	H[mm]	Remark
GR Series	R-LFP25.6V100Ah	25.6	100	300	442	110
GR Series	R-LFP25.6V200Ah	25.6	200	400	442	130.5	100A; 150A
GR Series	R-LFP48V50Ah	48	50	400	442	130.5	3U
GR Series	RR-LFP48V100Ah	48	200	400	442	130.5	3U
GR Series	R-LFP48V135Ah	48	135	450	442	175	4U
GR Series	R-LFP48V150Ah	48	150	520	442	175	100A, 4U
GR Series	R-LFP48V200Ah	48	200	550	442	250	100A; 150A; 200A
GR Series	R-LFP48V280Ah	48	280	650	442	250
GR Series	R-LFP51.2V50Ah	51.2	50	400	442	130.5
GR Series	R-LFP51.2V100Ah	51.2	100	400	442	130.5
GR Series	R-LFP51.2V150Ah	51.2	150	396	442	260	100A, 6U
GR Series	R-LFP51.2V200Ah	51.2	200	550	442	250	100A; 150A; 200A
GR Series	R-LFP51.2V280Ah	51.2	280	650	442	250	140A
GR-E Series	R-LFP25.6V100Ah	25.6	100	300	442	110
GR-E Series	R-LFP25.6V200Ah	25.6	200	400	442	130.5	100A; 150A
GR-E Series	R-LFP48V50Ah	48	50	400	442	130.5	3U
GR-E Series	RR-LFP48V100Ah	48	200	400	442	130.5	3U
GR-E Series	R-LFP48V135Ah	48	135	450	442	175	4U
GR-E Series	R-LFP48V150Ah	48	150	520	442	175	100A, 4U
GR-E Series	R-LFP48V200Ah	48	200	550	442	250	100A; 150A; 200A
GR-E Series	R-LFP48V280Ah	48	280	650	442	250
GR-E Series	R-LFP51.2V50Ah	51.2	50	400	442	130.5
GR-E Series	R-LFP51.2V100Ah	51.2	100	400	442	130.5
GR-E Series	R-LFP51.2V150Ah	51.2	150	396	442	260	100A, 6U
GR-E Series	R-LFP51.2V200Ah	51.2	200	550	442	250	100A; 150A; 200A
GR-E Series	R-LFP51.2V280Ah	51.2	280	650	442	250	140A

Scene usage

Spain
Energy storage system: 625kwpcs+1305kwh liquid cooling battery all in one cabinet
Application scenario: Farm
Date of shipment:May,2025
Application:A European farm uses five
125kW/261kWh cabinets to store solarenergy and ensure backup power for
critical operations
Poland
Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
Application scenario:Renewable Energy Community in Europe
Delivery data:Oct,2025
Application:Deploying PV
250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
Estonia
Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
Application scenario :Estonia
Delivery data:Mar,2026
Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
Philippines
Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
Application scenario：Factory
Date of shipment:July,2025
Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
Thailand
Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
Application scenario:Farm
Delivery data:Dec,2025
Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
Italy
Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet
Application scenario :Industrial park
Delivery data:May,2025
Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.

Production Line

FAQ

Q：What is your lead time for the mass production?
A：General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.

Q：What kind of certificates do you have?
A：We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 & etc. if your need.

Q：Are you a factory or a trading company
A：We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Q：What information do you need to make a customized battery pack?
A：We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.

Q：Are you battery real capacity?
A：All of our battery cells with Grade A, 100% new and real capacity.

Q：What is your company's advantage?
A：We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after sales service.

Q：Do you accept OEM/ODM?
A：Yes, it is avaliable.

Q：Do you provide after-sales serive?
A：Yes, the warranty is usually 3 years, if any quality problems on our side in this period, we can send new one as replacement.

Q：Can I have samples to test? And what is lead time for sample order?
A：Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
