Home Energy Storage 16Kwh Lithium Battery

  • Home Energy Storage 16Kwh Lithium Battery
  • Home Energy Storage 16Kwh Lithium Battery
  • Home Energy Storage 16Kwh Lithium Battery
  • Home Energy Storage 16Kwh Lithium Battery
  • Home Energy Storage 16Kwh Lithium Battery
  • Home Energy Storage 16Kwh Lithium Battery

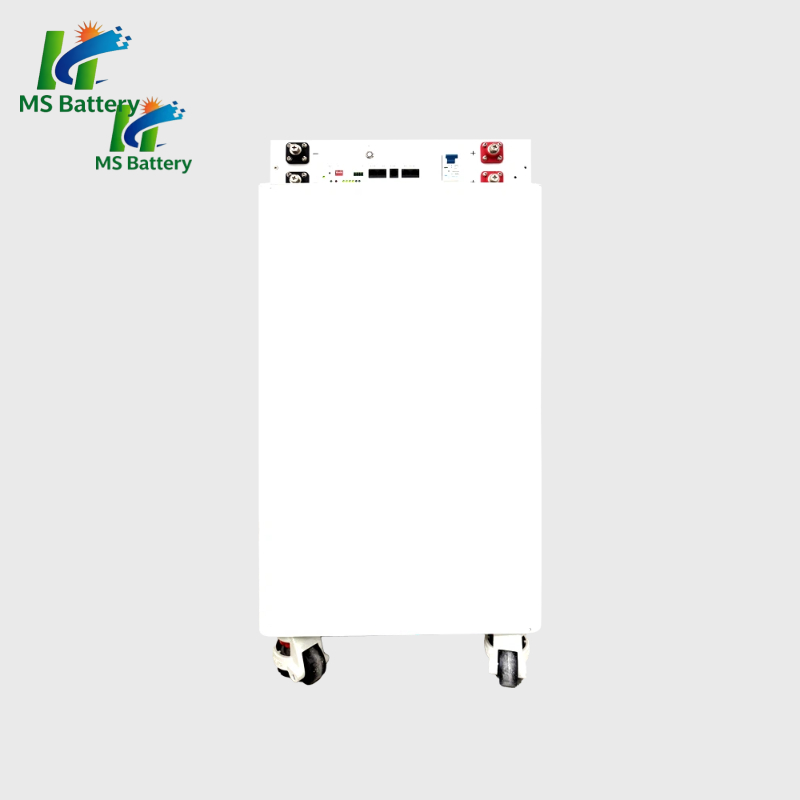

Home Energy Storage 16Kwh Lithium Battery

Home energy storage lithium batteries are equipped with advanced battery management systems (BMS) to ensure optimal performance and safety. Its compact floor-mounted design maximizes space and provides reliable energy, making it ideal for residential and commercial use.
51.2V 10kwh integrated vertical lithium iron phosphate battery, 10kWh full-charge energy, specially designed for photovoltaic energy storage.The automotive grade A-grade battery cells have cycled more than 8,000 times.
90c07ac899b1500ecead6a1c8c56591c
Email : sales@cnmsenergy.com
WhatsApp : +8615066412920
Contact Us →

Product Details

Product Parameters

Product ModelM16S314BL-F
Cells In Series16S
Rated Energy (KWh)16
Rated Voltage (V)51.2
Charging Voltage (V)58.4
Discharge Cut-off Voltage (V)42
Standard Charge Current (A)50
Maximum Charging Current (A)100
Maximum Discharge Current (A)200

Features

FeatureDetails
Cycle Life≥ 6000 times @ 80% DOD, 25 °C
Methods Of CommunicationRS232/RS485/CAN
Charging Temperature0~60°C
Discharge Temperature-10~65°C
How It Is DisplayedLCD display
IP ProtectionIP 21

Conventional

ConventionalDetails
Product Dimensions (L×W×H mm)550×290×850
Net Weight (Kg)132.4
Packing Dimensions (L×W×H mm)950×705×615
Gross Weight (Kg)153

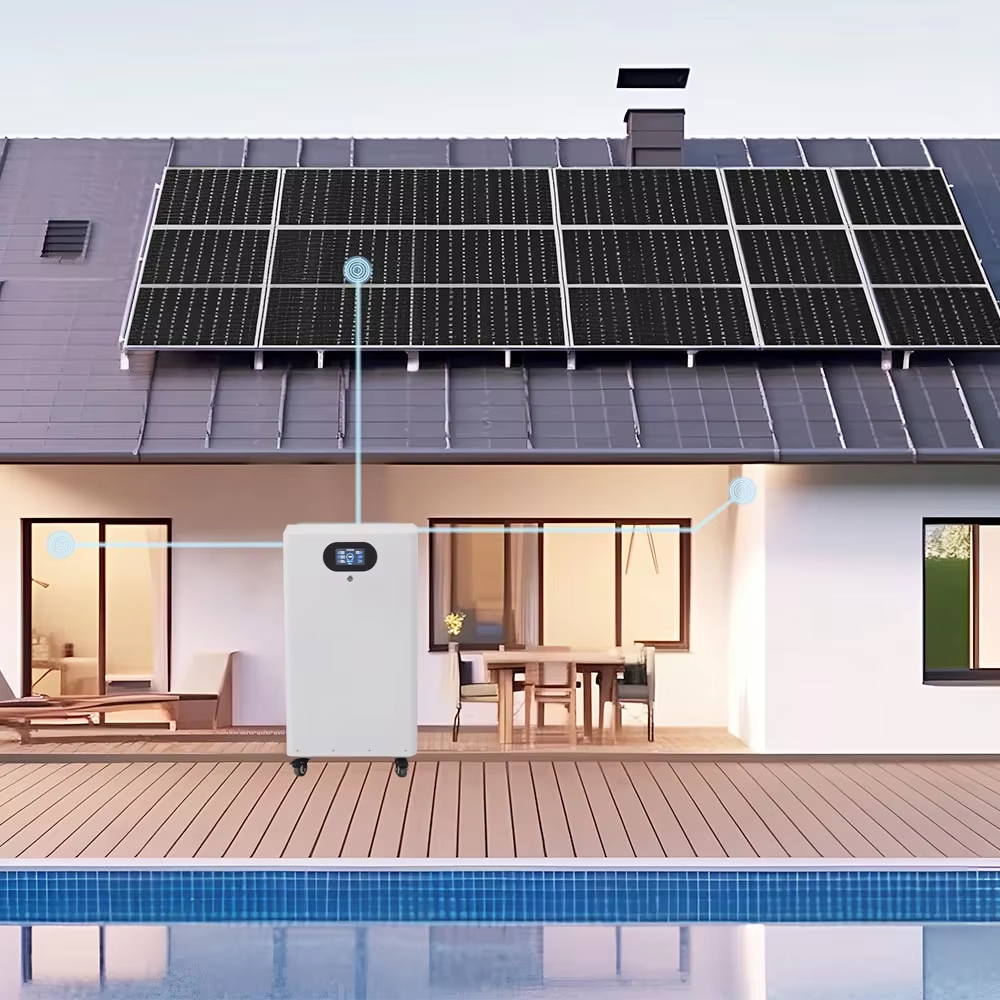

应用场景

详情图

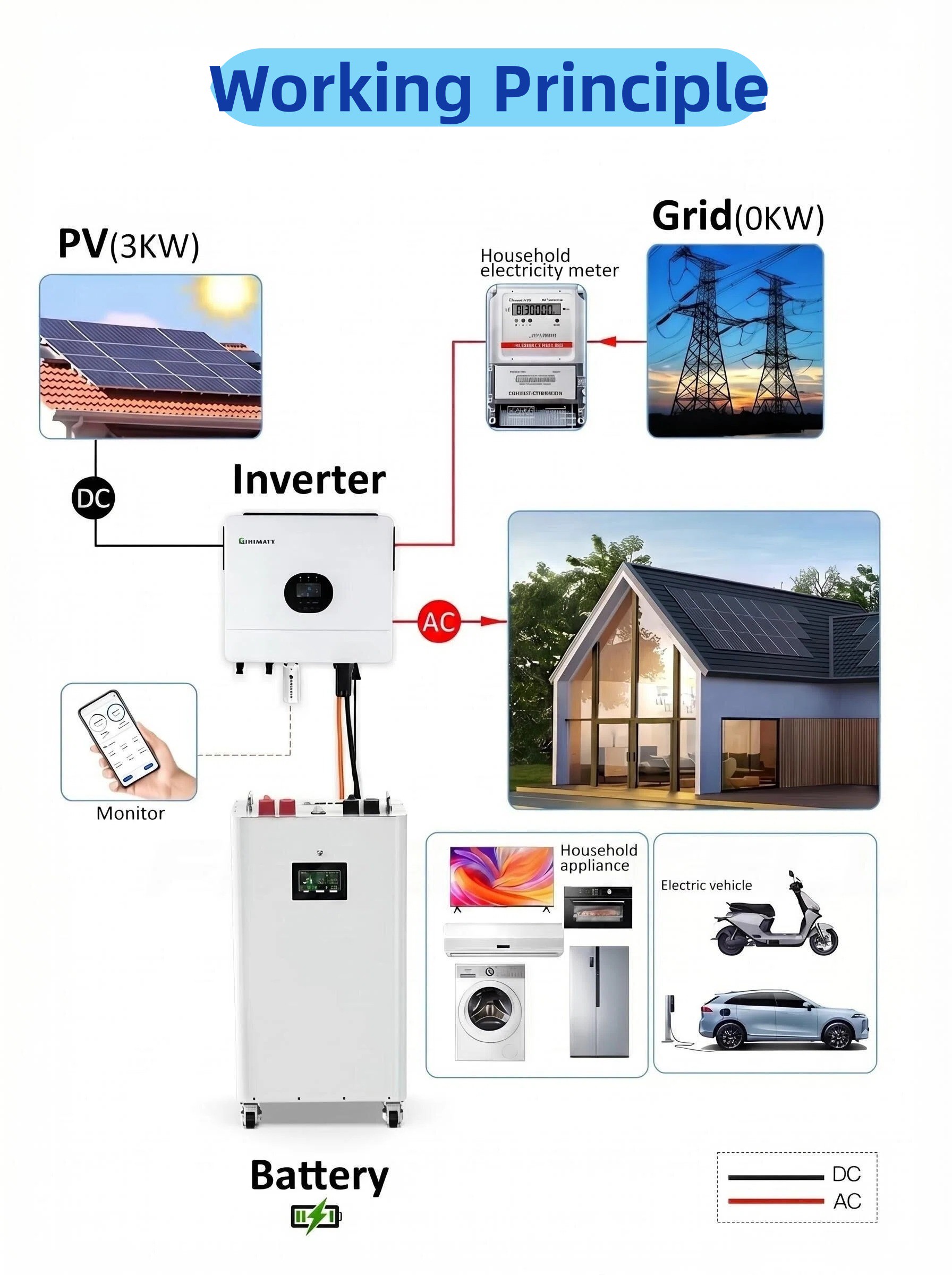

工作场景


Intelligent Protection

智能管理-1
智能防护-2
智能防护-3

Production Process

生产流程

Product Packaging

产品包装-1

Packaging and Shipping

包装运输-2

Installation Case Studies

安装使用图

Scene usage

  • cb4ba80aa3f09e467632b0f4f0430092
    Spain
    Energy storage system: 625kwpcs+1305kwh liquid cooling battery all in one cabinet
    Application scenario: Farm
    Date of shipment:May,2025
    Application:A European farm uses five
    125kW/261kWh cabinets to store solarenergy and ensure backup power for
    critical operations
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario:Renewable Energy Community in Europe</br>Delivery data:Oct,2025</br>Application:Deploying PV </br>250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
    Poland
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario:Renewable Energy Community in Europe
    Delivery data:Oct,2025
    Application:Deploying PV
    250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario :Estonia</br>Delivery data:Mar,2026</br>Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
    Estonia
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario :Estonia
    Delivery data:Mar,2026
    Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
  • Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario：Factory</br>Date of shipment:July,2025</br>Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
    Philippines
    Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario：Factory
    Date of shipment:July,2025
    Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
  • Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet </br>Application scenario:Farm</br>Delivery data:Dec,2025</br>Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
    Thailand
    Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario:Farm
    Delivery data:Dec,2025
    Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
  • Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario :Industrial park</br>Delivery data:May,2025</br>Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.
    Italy
    Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario :Industrial park
    Delivery data:May,2025
    Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.

Production Line

  • Airtightness Test
  • Box Assembly
  • EOL Test
  • Left Airtightness Test
  • Laser Welding
  • Right-Laser Cleaning
  • Left 2 - Polaroid Photo
  • Insulation Testing

FAQ

Q：What is your lead time for the mass production?
A：General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.


Q：What kind of certificates do you have?
A：We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 & etc. if your need.


Q：Are you a factory or a trading company
A：We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.


Q：What information do you need to make a customized battery pack?
A：We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.


Q：Are you battery real capacity?
A：All of our battery cells with Grade A, 100% new and real capacity.


Q：What is your company's advantage?
A：We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after sales service.


Q：Do you accept OEM/ODM?
A：Yes, it is avaliable.


Q：Do you provide after-sales serive?
A：Yes, the warranty is usually 3 years, if any quality problems on our side in this period, we can send new one as replacement.


Q：Can I have samples to test? And what is lead time for sample order?
A：Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
