Residential Energy Storage Unit HLY-ELS06401F 57K

  • Residential Energy Storage Unit HLY-ELS06401F 57K
  • Residential Energy Storage Unit HLY-ELS06401F 57K

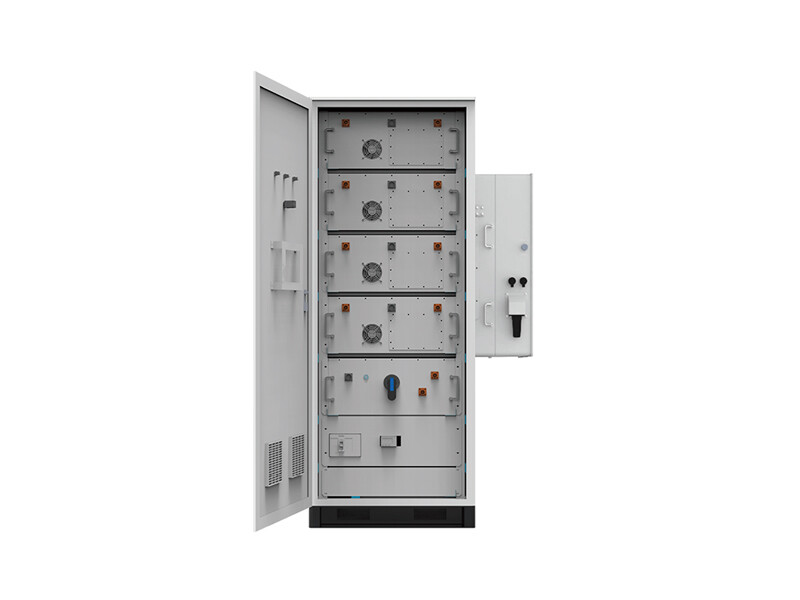

Residential Energy Storage Unit HLY-ELS06401F 57K

This new type of photovoltaic energy storage inverter controller integrates photovoltaic and mains charging with energy storage, outputting stable and efficient sinusoidal AC power. It employs DSP control and advanced control algorithms to achieve high response speed and high reliability.
Email : sales@cnmsenergy.com
WhatsApp : +8615066412920
Contact Us →

Product Details

This new type of photovoltaic energy storage inverter controller integrates photovoltaic and mains charging with energy storage, outputting stable and efficient sinusoidal AC power. It employs DSP control and advanced control algorithms to achieve high response speed and high reliability.

Efficiency & Reliability

Significantly improves photovoltaic utilization, ensuring a system power generation-MPPT efficiency of up to 99.99% and maximizing returns;

Features intelligent charging and discharging modes for flexible configuration based on needs;

Built-in comprehensive protection mechanisms ensure stable and safe operation of the equipment.

Intelligent

Supporting remote intelligent control and real-time monitoring, its integrated industrial design combines modern aesthetics and ergonomics, showcasing the temperament of a high-end brand.

High safety & long lifespan

Multiple safety certifications obtained;

Combined hardware and software for 360° safety protection;

Strong battery compatibility: supports various battery types;

Intelligent BMS communication: real-time data interaction ensures safe and efficient operation of lithium-ion batteries.

High quality & high stability

Outputs high-quality pure sine wave AC power (THD < 3%);

Continuously and stably operates at rated power without fear of damage.

668d2f22-840a-435d-adec-4a0cafa2cc48


ModelHLY-ELS06401F 57K
DC Side Parameters
Cell TypeLFP-3.2V280Ah
System Configuration1P64S
Cell Voltage Range160V~233.6V
Cell Nominal Capacity57kWh
AC Side Parameters
Rated AC Input (W)30000
Max. AC Input (VA)33000
Max. Continuous AC Current (From Grid to Load) (A)200
Peak Power (W)1.5 times Rated Power, 10s
PFC Range0.8s Advance/Delay
Rated Input/Output Voltage/Range (V)220/380V, 230/400V 0.85Un-1.1Un
Frequency (Hz)50/45-55, 60/55-65
Grid Connection Form3L+N+PE
Total THDi Distortion<3% (Nominal Power)
DC Injection Current<0.5% In
System Parameters
Dimensions800×800×2200mm
CommunicationWi-Fi, RS485, CAN
IP RatingIP54
Operating Temperature Range (°C)-40°C to 60°C, >45°C lower Capacity
Allowable Humidity0-100%
Allowable Altitude2000m
Noise Level (dB)≤65


Scene usage

  • cb4ba80aa3f09e467632b0f4f0430092
    Spain
    Energy storage system: 625kwpcs+1305kwh liquid cooling battery all in one cabinet
    Application scenario: Farm
    Date of shipment:May,2025
    Application:A European farm uses five
    125kW/261kWh cabinets to store solarenergy and ensure backup power for
    critical operations
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario:Renewable Energy Community in Europe</br>Delivery data:Oct,2025</br>Application:Deploying PV </br>250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
    Poland
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario:Renewable Energy Community in Europe
    Delivery data:Oct,2025
    Application:Deploying PV
    250kW/522kWh cabinet enables affordable solar power, with excess energy stored for reliable supply.
  • Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet</br>Application scenario :Estonia</br>Delivery data:Mar,2026</br>Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
    Estonia
    Energy storage system: 2sets 125kw pcs+261kwh liquid cooling battery all in one cabinet
    Application scenario :Estonia
    Delivery data:Mar,2026
    Application:With commercial electricity at ~€0.156/kWh in Estonia, two 125kW/261kWh systems are deployed for peak shaving and load shifting.
  • Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario：Factory</br>Date of shipment:July,2025</br>Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
    Philippines
    Energy storage system: Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario：Factory
    Date of shipment:July,2025
    Application:Two 125kW/261kWh hybrid cabinets with 200kW MPPT enable a Solar + ESS + DG solution, ensuring 24/7 power for a Philippine factory.
  • Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet </br>Application scenario:Farm</br>Delivery data:Dec,2025</br>Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
    Thailand
    Energy storage system: 2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario:Farm
    Delivery data:Dec,2025
    Application:A Thailand farm uses two 125kW/261kWh all-in-one cabinets to optimize peak/off-peak usage and reduce energy costs.
  • Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet</br>Application scenario :Industrial park</br>Delivery data:May,2025</br>Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.
    Italy
    Energy storage system:2* 125kW / 261kWh Liquid Cooling Cabinet
    Application scenario :Industrial park
    Delivery data:May,2025
    Application:This project features an AC-coupled solar + ESS system with two 125kW/261kWh cabinets, storing excess solar energy and supplying loads during peak hours to reduce grid dependence.

Production Line

  • Airtightness Test
  • Box Assembly
  • EOL Test
  • Left Airtightness Test
  • Laser Welding
  • Right-Laser Cleaning
  • Left 2 - Polaroid Photo
  • Insulation Testing

FAQ

Q：What is your lead time for the mass production?
A：General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.


Q：What kind of certificates do you have?
A：We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 & etc. if your need.


Q：Are you a factory or a trading company
A：We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.


Q：What information do you need to make a customized battery pack?
A：We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.


Q：Are you battery real capacity?
A：All of our battery cells with Grade A, 100% new and real capacity.


Q：What is your company's advantage?
A：We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after sales service.


Q：Do you accept OEM/ODM?
A：Yes, it is avaliable.


Q：Do you provide after-sales serive?
A：Yes, the warranty is usually 3 years, if any quality problems on our side in this period, we can send new one as replacement.


Q：Can I have samples to test? And what is lead time for sample order?
A：Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
